Pile Cloth filter “ORSO”

Highly efficient filtration with minimal operating costs Microfiltration and filtration

A unit operating on the OUT-IN filtration principle, a 100% submerged Pile Cloth Disc filter with filter cloth from 5 μm.

The Pile Cloth filter “ORSO” guarantees maximum efficiency, TSS removal, BOD and COD reduction, phosphorus reduction down to 0.1 mg/l, and removal of micropollutants. It minimizes operating costs and the need for operator attendance.

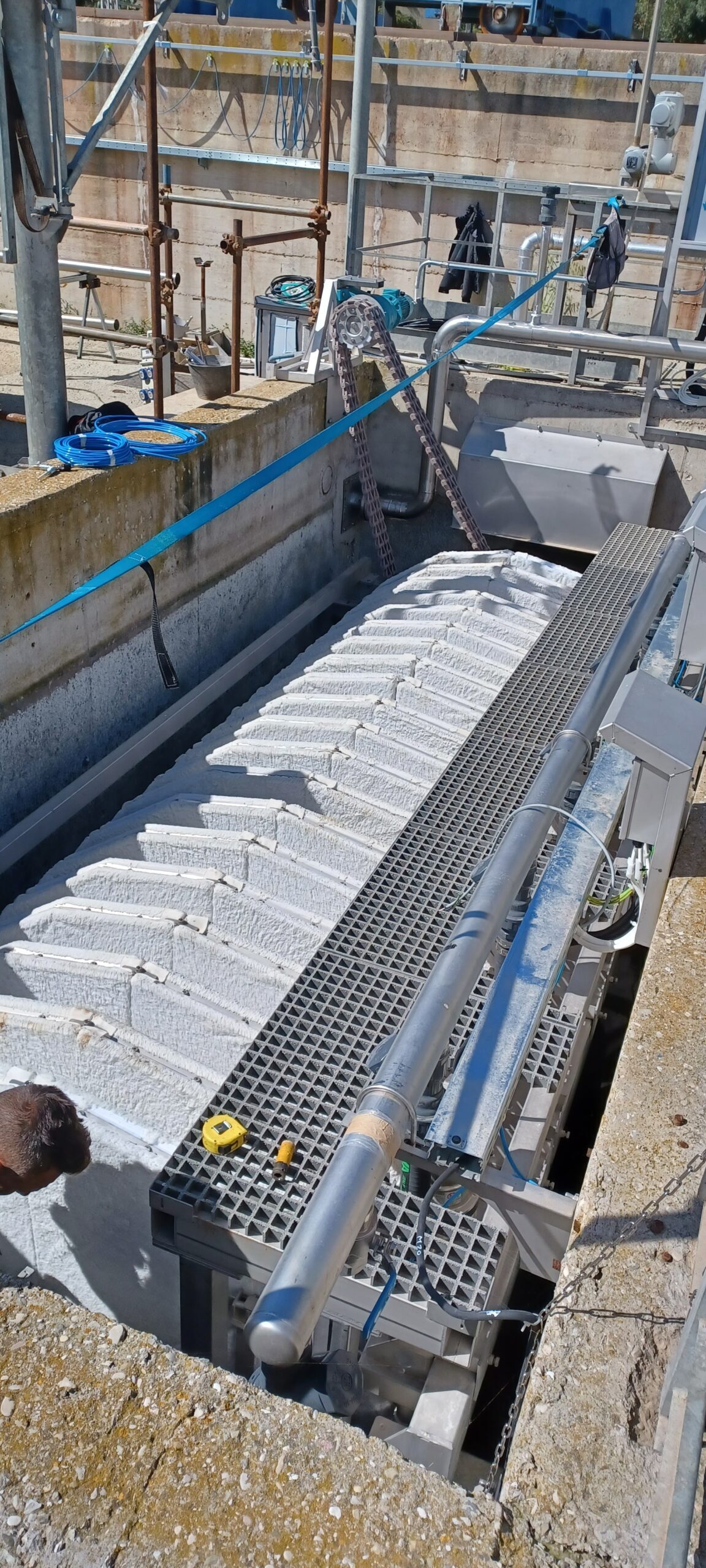

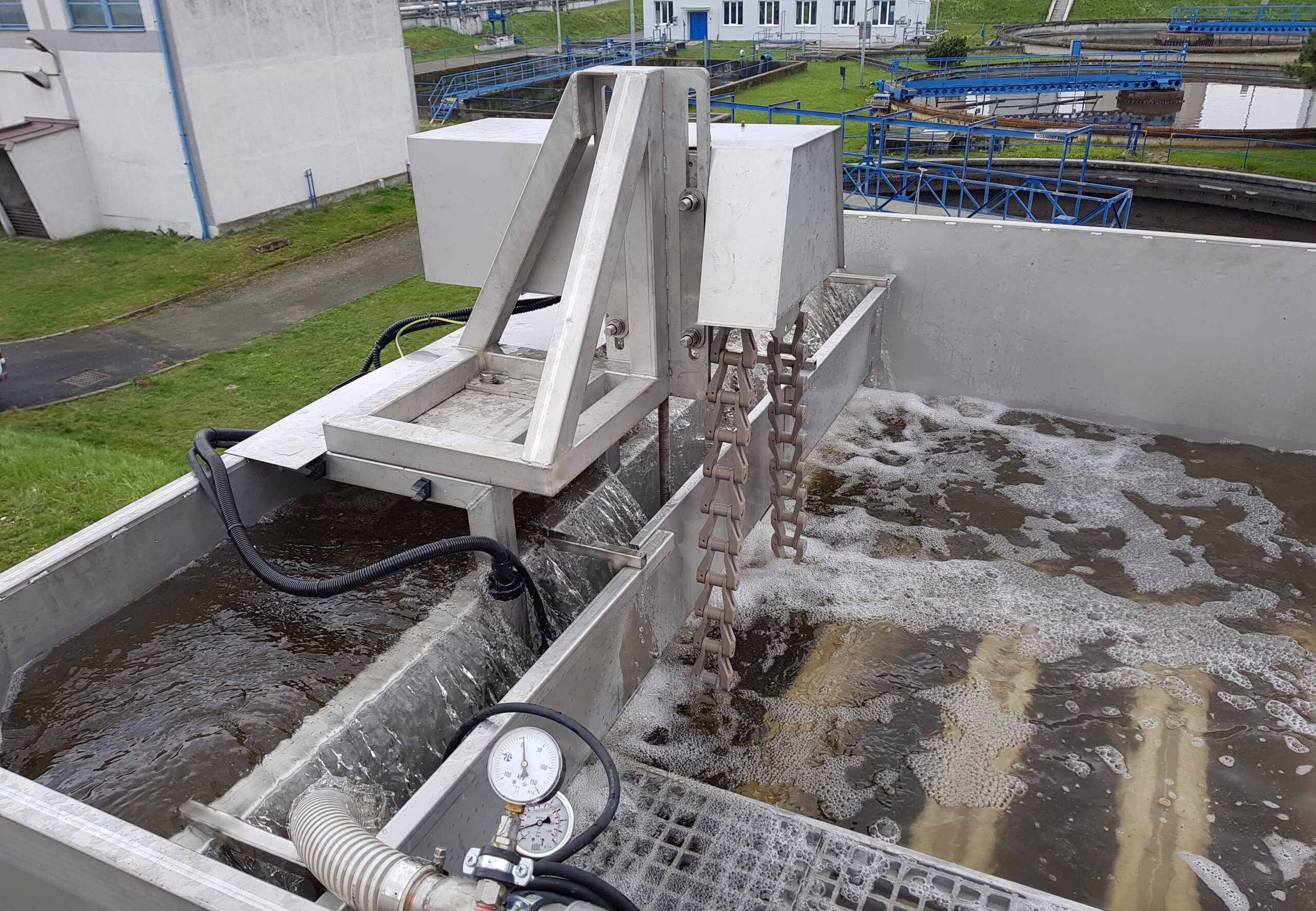

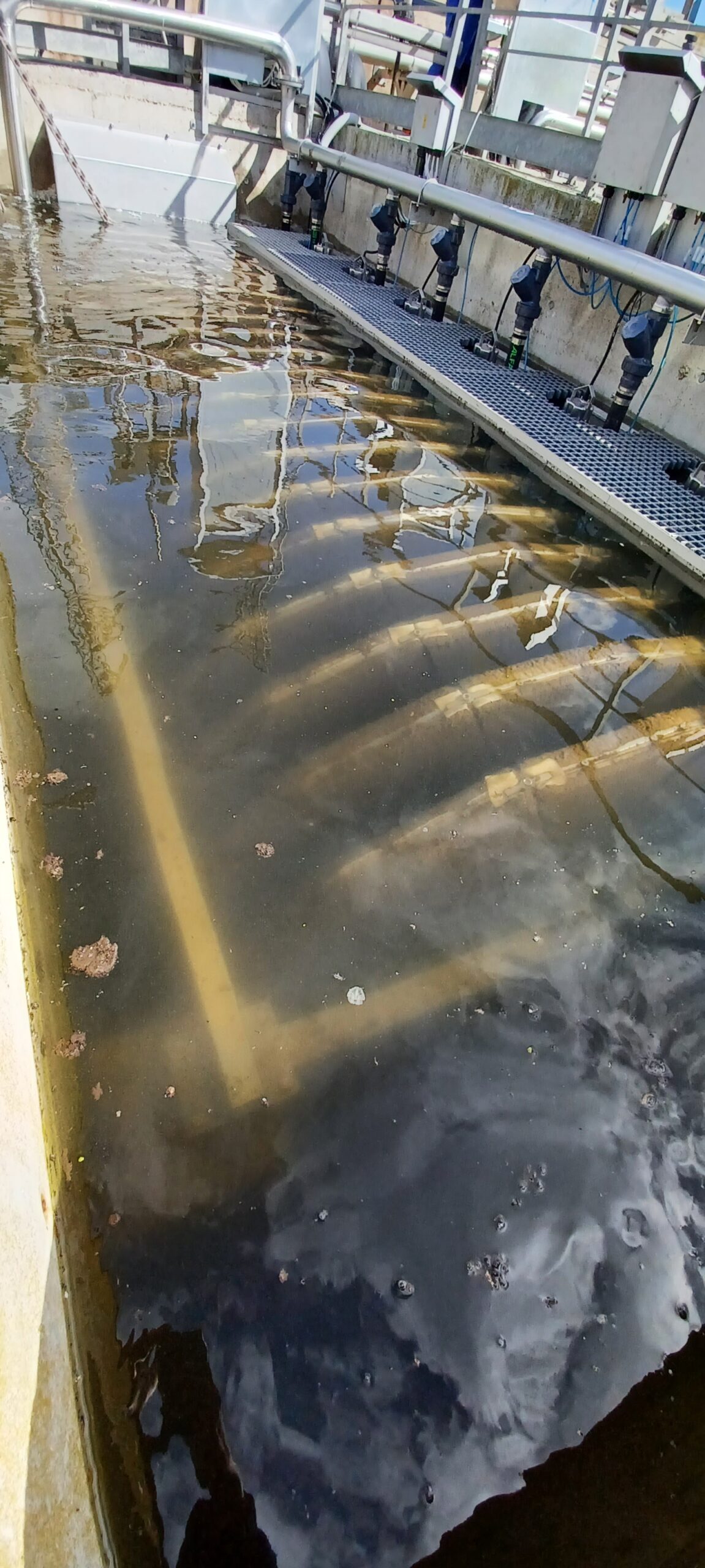

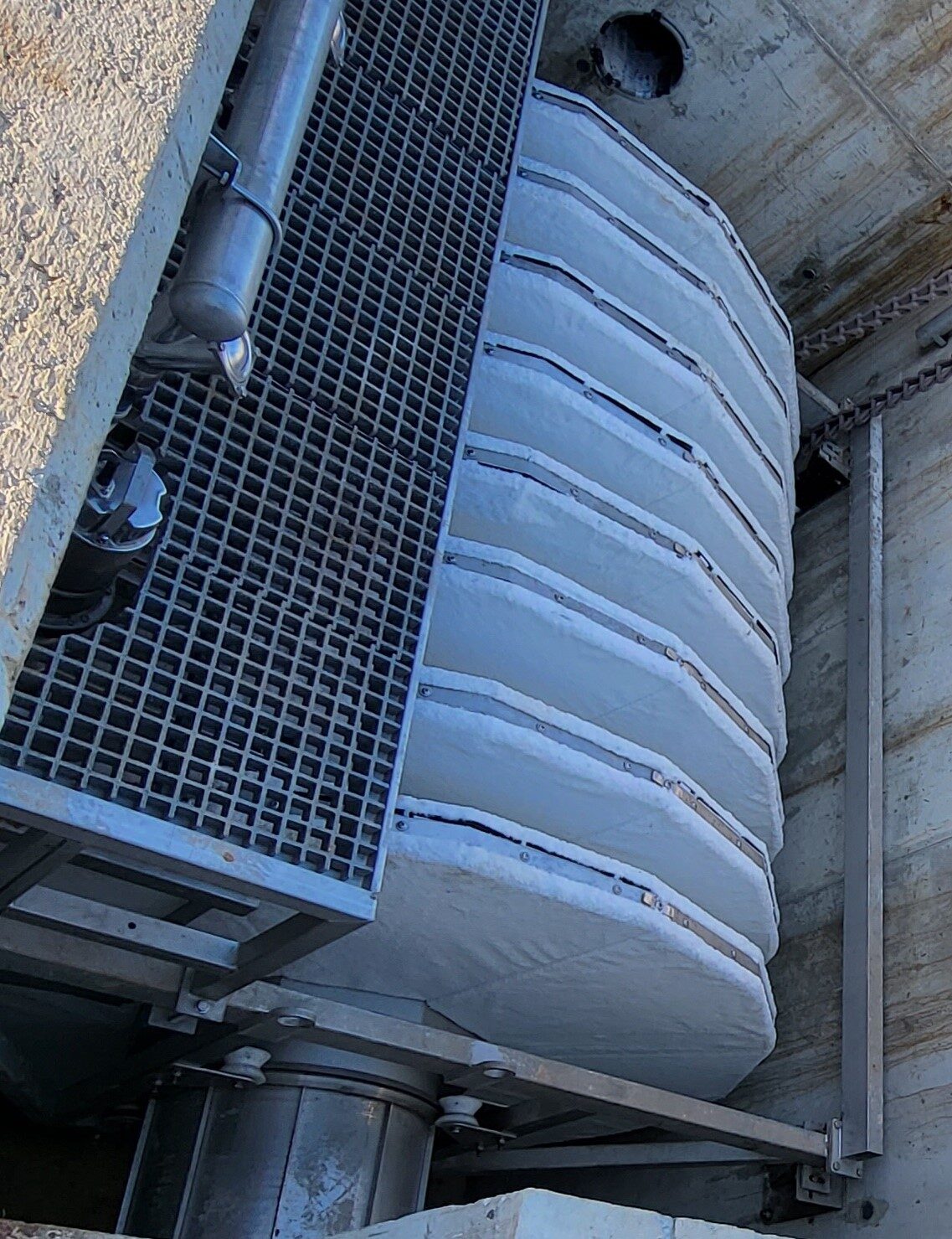

Photos from apps

Filtration principle

OUT → IN, 100% use of filtration area

Filter cloth fineness

from 5 μm

Design

stainless steel AISI 304 / 316 or higher

Filter cloth

Pile Cloth filter cloth with long pile

Control

level probe + PLC, SCADA connection, timer

Disc diameter

2,2 m

Disc filtration area

6 sqm

Maximum hydraulic flow rate

up to 2,037 m³/h

Operating mode

continuous filtration

Installation

concrete channel / steel tank

Pile Cloth filter "ORSO" for municipal and industrial applications

The Pile Cloth filter “ORSO” is a high-performance new-generation Disc filter that uses the OUT-IN filtration principle, specially developed long-pile cloth, and the possibility of sedimentation in the filter tank. This combination enables extremely efficient removal of suspended solids and organic particles even under high hydraulic and solids loading, where conventional filters are less effective.

The “ORSO” filter is designed for operations requiring large filtration capacity, low energy demand, and maximum operational reliability.

It is the ideal solution for municipal wastewater treatment plants, industrial operations, and influent water filtration where emphasis is placed on treated water quality and stable operation.

Municipal wastewater treatment plants – the filter is suitable as a
- tertiary treatment stage – TSS removal, reduction of COD and BOD in the effluent, phosphorus reduction down to 0.1 mg/l. It is suitable for meeting strict discharge limits into receiving waters,
- quaternary treatment – use as pre-treatment for various PFAS removal technologies. The filter can be used in combination with powdered activated carbon dosing as a standalone quaternary stage.
- replacement of sand filtration – same or higher performance with dramatically lower energy and space requirements,
- filtration in areas with fluctuating hydraulic and solids loading – stable filter performance even during sudden increases in impurity concentration,
- optimization of existing WWTP operation – capacity increase without major civil works

Industrial operations – the filter is especially suitable for
- food and beverage industry
- textile and paper industry,
- power generation and heating industry
- aquaculture
- drinking water treatment plants

Aplikace

Benefits of IN-EKO TEAM solutions

a filter with a disc diameter of 2.2 m has 1 sqm more filtration area than is usual with competing units
exceptionally low energy consumption
low OPEX
higher effluent water quality
the filter is resistant to shock loads of Qmax and TSS
large filtration capacity in a small footprint (100% submerged system)
low maintenance
exceptionally quiet operation
long filter cloth service life (with no risk of tearing)
continuous filtration even during cloth washing
possibility of sedimentation in the filter tank
excellent solution for industrial applications
design allowing installation even with uneven concrete channels
for two-stage filtration systems, possibility of combination with IN-OUT disc filters
remote monitoring – Industry 4.0

Optional modifications

installation of dry pumps
folded overflow edge – increases filter capacity
possibility of project-based modifications
filter cover

Smarter operation through innovation

In cooperation with partners, we develop solutions that reduce environmental impact – from energy-efficient components to digitalized operation and remote equipment monitoring.

Sustainability as a foundation

From design to operation, our technologies are created to save resources, energy, and space. This is not a trend – sustainability is a natural part of every piece of equipment we develop.

Our goal is to ensure clean water for future generations.

Technology hub

Why IN-EKO TEAM?

IN-EKO TEAM is a Czech technology company with its own development and research department as well as its own manufacturing facilities. We design, manufacture, and supply top-class wastewater treatment equipment – from municipal wastewater treatment plants and industrial operations to aquaculture.

Our equipment is made of high-quality stainless steel and installed in more than 80 countries worldwide. Thanks to our long-term know-how, patented solutions, and precise workmanship, we offer our partners the reliability of efficient equipment with a long service life, together with after-sales service and commercial support.

We are your partner from the initial design through commissioning to subsequent service inspections.

O nás

WWTP

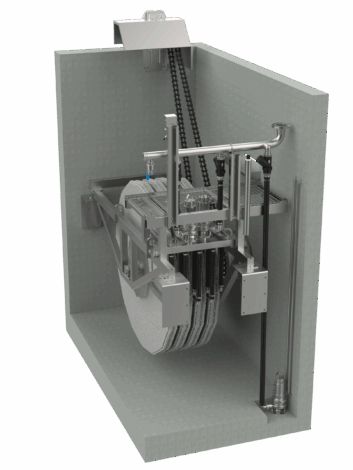

How does the Pile Cloth filter "ORSO" work?

Untreated water including impurities flows into the filter tank in which the filter is located. It is formed by individual filter segments covered with filter cloth. The whole system is 100% submerged. Untreated water passes through the filter cloth and all impurities are captured on its surface (deep-bed sand filtration principle). As impurities are retained on the filter cloth, water flow through the filter decreases and the water level in the filter tank gradually rises. When the level probe is activated, the washing process is initiated and the filter discs begin to rotate. This process involves slow rotation and suction removal of impurities.

Once the water level drops to the set minimum, the wash cycle ends and the filtration cycle repeats. Treated water flows to the downstream technology.

Filtration goes on continually without interruption.

Clean water is no coincidence.
It is technology.

WWTP Aquaculture Industry

Impurity

Removal of micropollutants and pharmaceuticals – quaternary treatment

Products

Find the right device

Pile Cloth filter “ORSO”

Clean water is no coincidence. It is technology.

Case study / reference

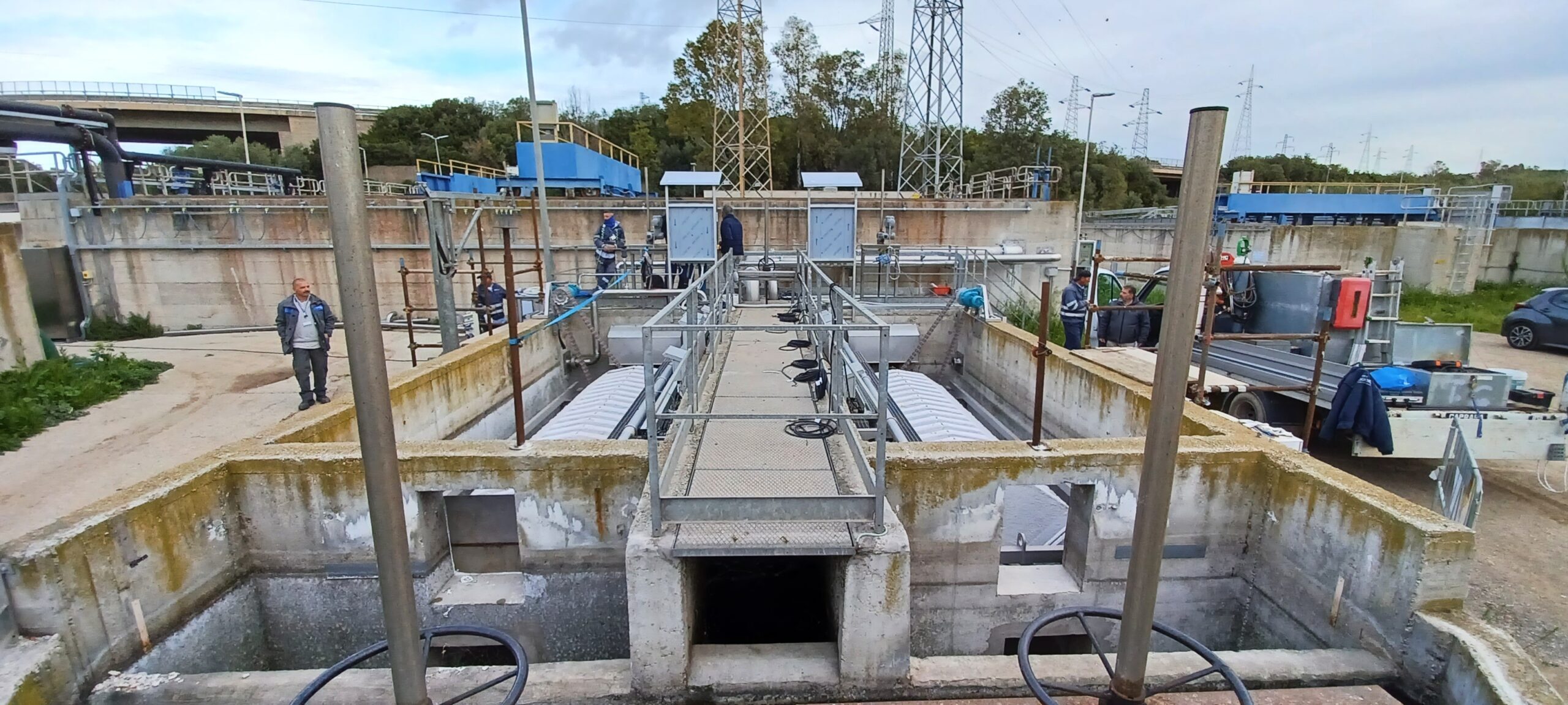

WWTP Civitavecchia, Italy – influent 73 mg/l TSS, effluent 6 mg/l TSS
